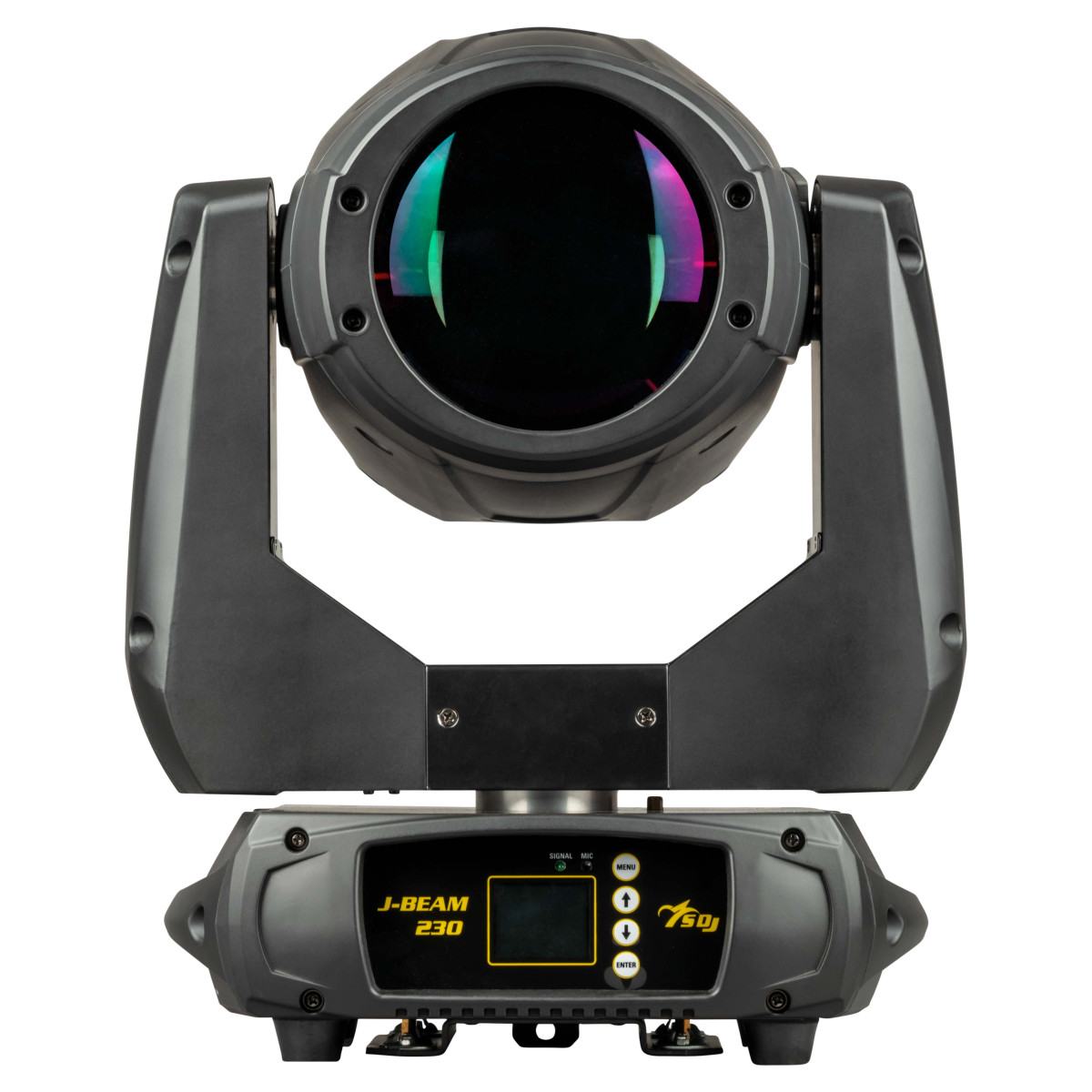

SAGITTER J BEAM230

Light sourcetOsram Sirius HRI 231W
Lamp lifespan: 2000 h
Electronic ballast
Optic systemtBeam Angle: 2,5°
Electronic focus
Illuminance: 66.000 lux @ 15 mt
Color systemtColor wheel with 11 dichroic filters + white
EffectstLinear dimmer 0 – 100 %
Electronic strobo, pulse, random
Fixed gobo wheel with 16 gobos and 3 steps ”beam reducer”
Gobo shaking effect
Gobo scroll effect with adjustable speed
16 + 24 facet circular rotating prism with adjustable speed
Color rainbow effect
Selectable half color function
Frost filter
Control and programmingt3 DMX configurations available: 13/15/17 channels
Protocol USITT DMX 512
Master / Slave mode
Sound mode with adjustable microphone sensitivity
Auto mode with 9 internal programs selectable from display
Reset function via DMX
Structure and cabinettBlack metal housing and high resistance plastic material
Graphic LCD color display
Pan angle: 360°/540°/630°
Tilt angle: 90°/180°/270°
Mounting points: 2 pairs of 1 / 4 turn locks
Automatic repositioning of Pan&Tilt after accidental movements
XLR 3-poles DMX IN/OUT connectors
USB port for optional wireless DMX receiver (order code: SG WECONUSB)
IP Rating: IP 20
Forced air cooling system with electronic control
Power supplytInput Voltage: AC~100 – 240 V, 50/60 Hz
Switching power supply unit
Max power: 360W @ 230VAC
Power IN/OUT Powercon connectors
Power supply cable 1 mt included
Weight and dimensionstNet weight: 12,5 kg
Dimensions: 338 x 469 x 224 mm
