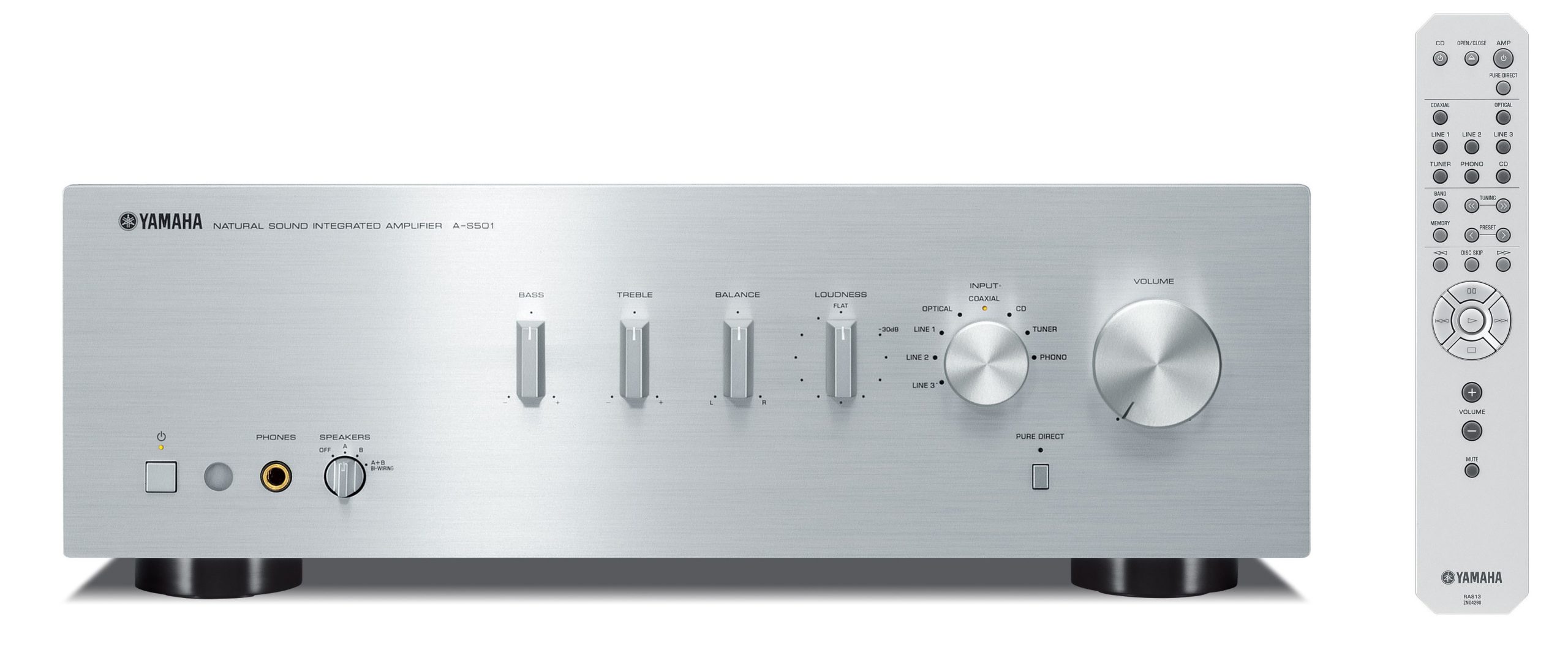

YAMAHA A-S501
85 W + 85 W (0.019% THD)
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe) t
120 W + 120 W
High Dynamic Power/Channel (8/6/4/2 ohms) t
130/150/185/220 W
Damping Factor t
240
Frequency Response t
10 Hz-100 kHz +/-1.0 dB
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz) t
0.019% (50 W/8 ohms)
Signal-to-Noise Ratio (CD) t
99dB (input shorted, 200 mV)
Audio In / Out t
8 / 2
Digital Input t
Yes (optical / coaxial)
Subwoofer Out t
Yes
DC out t
Yes
Pure Direct t
Yes
ToP-ART t
Yes
Standby Power Consumption t
0.5W
Power Management (Auto Power Standby) tYes
Dimensions (W x H x D) t
435 x 151 x 387 mm
Weight t
10.3 kg
